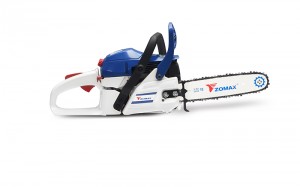

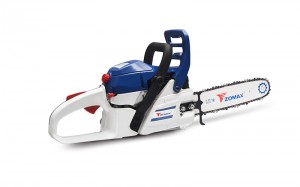

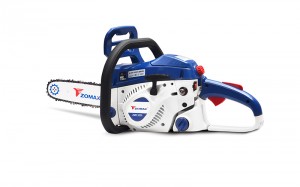

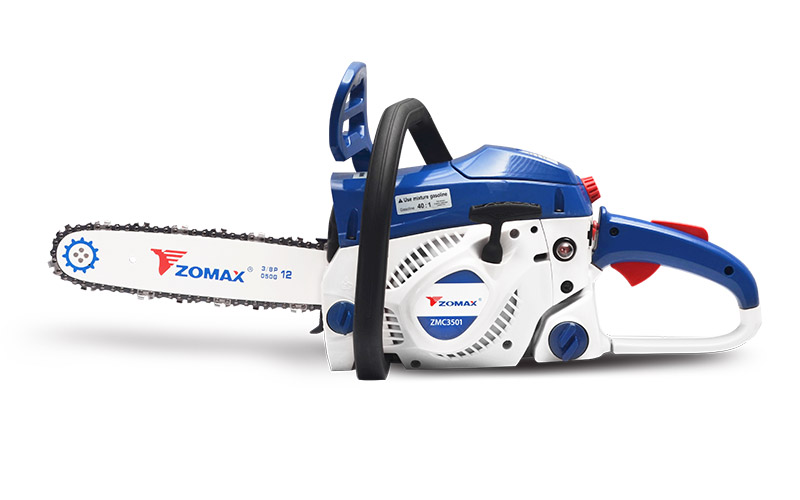

ZMC3501 Gasoline Chainsaw
ZMC3501 Gasoline Chainsaw
Stratified scavenging engine give to conformity with EUII emission standards. Braking time in 0.12s, quick response under any condition,comply with GS standards, protect the operator while cutting. ldeally for wood and branch cutting.
-
Displacement
35.2cc
-
Rated Power
1.2 kW/ 1.6hp
-
Dry Weight
4.6 kg
FEATURES
In Board Chain Brake System
Braking time in 0.125s quick response under any condition, comply with GS safety standard, protect the operator during ctting.
VIEW MORE
Anti- vibration System
Ergonomic designed antivibration system with a combination of spring and rubber, well protect the hand and arm of operator, lower fatigue.
VIEW MORE
Quick Start
Fuel primer, digital ignition and Auto-Choke carburetor encouraged easy and quick start.
VIEW MORE
Tool Storage Tank
VIEW MORESPECIFICATION
| Model | ZMC3803 | ZMC4203 | ZMC3501 |
| Displacement | 38.8 cc | 41.5 cc | 35.2 cc |
| Rated Power | 1.3kW/1.9hp | 1.5kW/2.0hp | 1.2kW/1.6hp |
| Bore/Stroke | Φ42/28 mm | Φ42/30 mm | Φ40/28 mm |
| Dry Weight | 5.0 kg | 5.3 kg | 4.6 kg |
| Carburetor | Diaphragm type | Diaphragm type | Diaphragm type |
| Ignition System | CDI | CDI | DIGITAL |
| Max Speed | 11,000 rpm | 11,000 rpm | 11,000 rpm |
| Idle Speed | 3.300±400 rom | 3.300±400 rom | 3.300±400 rom |
| Fuel Capacity | 370 ml | 370 ml | 320 ml |
| Oil Capacity | 220 ml | 220 ml | 200 ml |
| Oil & Fuel Ratio | 1:40 | 1:40 | 1:40 |
| Bar Lengths | 14”(34cm)/16"(38cm) | 14”(34cm)/16"(38cm) | 14”(34cm)/16"(38cm) |
