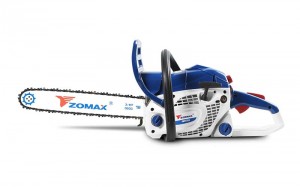

ZMC4203 Gasoline Chainsaw
ZMC4203 Gasoline Chainsaw
New shape design makes it fashion and atractive. Low emission, less fuel consumption but equivalent power. Good choice for cutting and maintenance.
-
DISPLACEMENT
41.5CC
-
POWER OUTPUT
1.5 kW/ 2.0hp
-
CHAIN SPEED AT MAX POWER
11,000RPM
-
GUIDE BAR LENGTH
14/16INCH

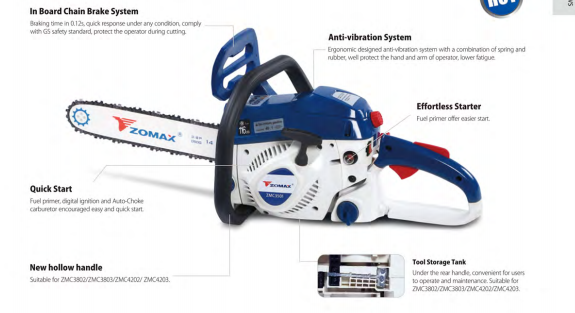

FEATURES
In Board Chain Brake System
Braking time in 0.125s quick response under any condition, comply with GS safety standard, protect the operator during ctting.
VIEW MORE
Anti- vibration System
Ergonomic designed antivibration system with a combination of spring and rubber, well protect the hand and arm of operator, lower fatigue.
VIEW MORE
Quick Start
Fuel primer, digital ignition and Auto-Choke carburetor encouraged easy and quick start.
VIEW MORE
Tool Storage Tank
VIEW MORESPECIFICATION
| Model | ZMC3803 | ZMC4203 | ZMC3501 |
| Displacement | 38.8 cc | 41.5 cc | 35.2 cc |
| Rated Power | 1.3kW/1.9hp | 1.5kW/2.0hp | 1.2kW/1.6hp |
| Bore/Stroke | Φ42/28 mm | Φ42/30 mm | Φ40/28 mm |
| Dry Weight | 5.0 kg | 5.3 kg | 4.6 kg |
| Carburetor | Diaphragm type | Diaphragm type | Diaphragm type |
| Ignition System | CDI | CDI | DIGITAL |
| Max Speed | 11,000 rpm | 11,000 rpm | 11,000 rpm |
| Idle Speed | 3.300±400 rom | 3.300±400 rom | 3.300±400 rom |
| Fuel Capacity | 370 ml | 370 ml | 320 ml |
| Oil Capacity | 220 ml | 220 ml | 200 ml |
| Oil & Fuel Ratio | 1:40 | 1:40 | 1:40 |
| Bar Lengths | 14”(34cm)/16"(38cm) | 14”(34cm)/16"(38cm) | 14”(34cm)/16"(38cm) |
